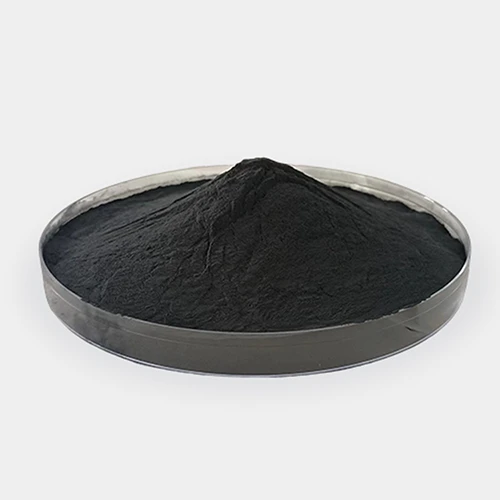

2N 3N 4N 5N 6N CRYSTALLINE BORON POWDER - Image 1

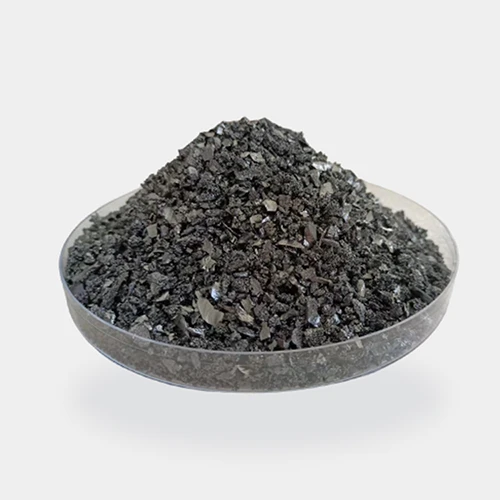

2N 3N 4N 5N 6N CRYSTALLINE BORON POWDER - Image 2

Click to enlarge

2N 3N 4N 5N 6N CRYSTALLINE BORON POWDER

The company is specialized in the production of CRYSTALLINE boron source manufacturers, but also the invention of CRYSTALLINE boron production technology research and development units. The regular particle size of the CRYSTALLINE boron powder produced by our company is 15-60μm; The conventional grain size of CRYSTALLINE boron particles is 1-10mm (special grain size can be customized according to customer needs), generally divided into 2N, 3N, 4N, 5N, 6N five specifications according to the purity.

Add to quote

Category: Boron Materials

Description

PRODUCT INTRODUCTION OF CRYSTALLINE BORON POWDER

The crystal type of boron is mainly β-shaped, and the β-shaped and γ-shaped cubes are synthesized to form a fixed crystal structure. The color is usually taupe powder or brown particles with irregular shape.
The company is specialized in the production of CRYSTALLINE boron source manufacturers, but also the invention of CRYSTALLINE boron production technology research and development units. The regular particle size of the CRYSTALLINE boron powder produced by our company is 15-60μm; The conventional grain size of CRYSTALLINE boron particles is 1-10mm (special grain size can be customized according to customer needs), generally divided into 2N, 3N, 4N, 5N, 6N five specifications according to the purity.

TYPICAL SIZE

BORON CONTENT	TYPICAL SIZE
99	1-5UM 10-30UM 50-100UM
99.9	-200MESH 0-10UM 1-10MM
99.99	-200MESH 1-10MM
99.999
99.9999

2N CRYSTALLINE BORON

B	FE	AU	AG	CU	SN	MN	PB
% MIN	PPM MAX
99	500	2.5	1	12	30	300	0.08

Packaging: Usually packed in vacuum aluminum foil bag, the size is 1kg/5kg (nano powder only sealed, no vacuum)

3N CRYSTALLINE BORON

B	FE	AU	AG	CU	SN	MN	PB	CA
% MIN	PPM MAX
99.9	200	0.08	0.8	10	9	3	0.3	18

Packaging: powder-type CRYSTALLINE boron packaging is usually packed in vacuum aluminum foil bag, the specification is 1kg/5kg/ bag; Granular CRYSTALLINE boron packaging is generally polytetrafluoroethylene bottle, filled with inert gas protection, specifications for 50g/500g/1000g/ bottle.

4N CRYSTALLINE BORON

B	FE	AU	AG	CU	SN	MN	PB	CA
% MIN	PPM MAX
99.99	90	0.06	0.3	0.1	0.1	1.2	1.1	0.2

Packaging: Usually PTFE bottle, filled with inert gas seal, size 50g/100g/ bottle;

5N CRYSTALLINE BORON

B	FE	AU	AG	CU	SN	MN	CA	AS	PB	W	GE
% MIN	PPM MAX
99.999	8	0.02	0.03	0.03	0.1	0.1	0.1	0.08	0.08	0.05	0.05

Packaging: Usually PTFE bottle, filled with inert gas seal, size 50g/100g/ bottle;

6N CRYSTALLINE BORON

B	FE	AU	AG	CU	SN	MN	CA	AS	PB	W	GE
% MIN	PPM MAX
99.9999	0.5	0.02	0.03	0.03	0.08	0.07	0.01	0.01	0.02	0.02	0.04

Packaging: Usually PTFE bottle, filled with inert gas seal, size 50g/100g/ bottle;
